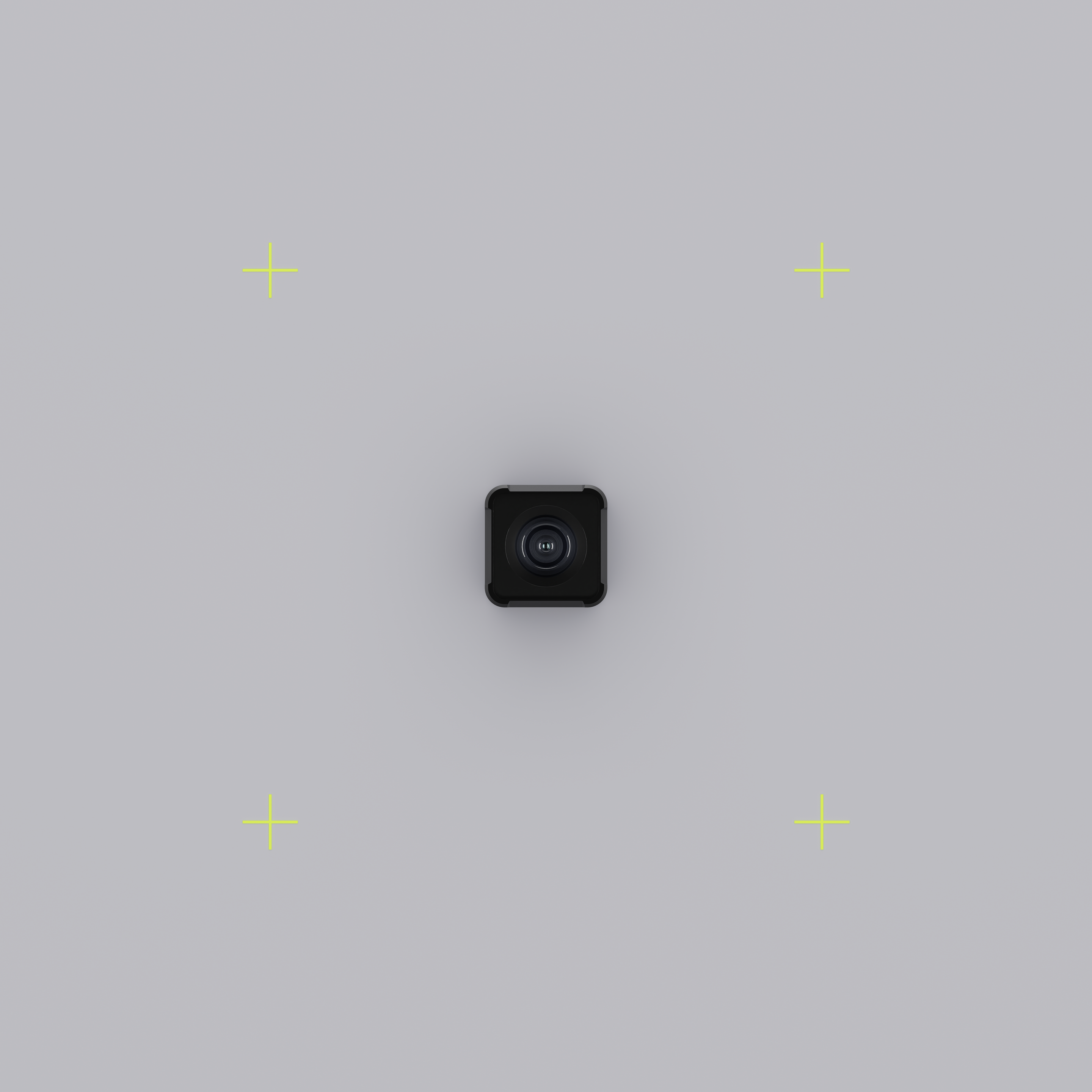

    ZED X One GS

    $399
    Field of view
    Cable F-F

    Accessories

    Dual Camera Mount for ZED X One
    $39
    ZED Link Capture Card
    From $139
    ZED Box Mini
    From $879
    gmsl2_cable_extender_5m
    GMSL2 Fakra Extension Cable M-F
    From $20

    The ZED X One GS is the ideal choice for multi-camera surround vision or for flexible integration and customization of stereo systems across agriculture, logistics and construction.

    Its global shutter is ideal for capturing crisp and distortion free footage of fast moving objects in robotics applications.

    Product Features
    • 2.3MP Color Global Shutter sensor
    • Resolution: 1920x1200 @60fps.
    • Field of view option: Wide 120.8°(D) x 110°(H) x 79.6°(V) or Narrow 91°(D) x 80°(H) x 52°(V)
    • Built-in industrial grade IMU
    • Multi-camera hardware synchronization and trigger through GMSL2
    • Secure GMSL2 connection with power
    • Multiple S-mount lens options
    • View Cable Guide
    • Compatible with ZED Box and GMSL2 Capture Cards
    • Compatible with ZED SDK



    • 1x ZED X One GS
    • Adapter plate + Screws
    • Surround vision
    • Teleoperation
    • Long-range 3D perception
    • Smart Analytics
    ProductSKUHS CodeCOO
    WideZED-41201085258900France
    NarrowZED-41301085258900France
    No lensZED-41101085258900France
    Shipping: Worldwide. Dispatched in 2-3 working days.
    $399

    Compare

    Mechanical

    Weight
    50g
    55g
    59g
    Dimensions
    31mm x 31mm x 52mm
    31mm x 31mm x 52.7mm
    31mm x 31mm x 58.1mm
    Operating Temperature
    -20°C to +55°C (-4°F to 131°F)
    -20°C to +55°C (-4°F to 131°F)
    -20°C to +55°C (-4°F to 131°F)

    Video Output

    Video Output
    1920x1200 @15/30/60fps
 1920x1080 @15/30/60fps cropping mode
 960x600 @15/30/60/120fps binning mode
    1920x1200 @15/30/60fps
 1920x1080 @15/30/60fps cropping mode
 960x600 @15/30/60/120fps binning mode
    3840x2160 @15fps
 1920x1080 @15/30/60fps cropping mode
 960x600 @15/30/60/120fps binning mode

    Motion

    Motion Sensors
    200Hz / 400Hz 16-bits
 Accelerometer (up to 12g)
    200Hz / 400Hz 16-bits
 Accelerometer (up to 12g)
    200Hz / 400Hz 16-bits
 Accelerometer (up to 12g)

    Lens

    Lens Type
    Narrow
    Wide
    Wide
    Focal Length
    4mm
    2.2mm
    3.1mm
    Field of View
    91°(D)
 80°(H)
 52°(V)
    120.8°(D)
 110°(H)
 79.6°(V)
    118.8°(D) 109.9°(H) 71.8°(V)
    Polarizing Filter
    No
    No
    No

    Image Sensors

    Sensor Size
    1/2.6” sensors
    1/2.6” sensors
    1/1.8"
    Sensor Resolution
    2.3M pixels sensors with 3-micron pixels
    2.3M pixels sensors with 3-micron pixels
    8.2M pixels sensors with 2µm pixels
    Sensor Format
    16/10
    16/10
    16/9
    Shutter Sync
    Electronic Synchronized Global Shutter
    Electronic Synchronized Global Shutter
    Electronic Rolling Shutter

    Connectivity

    Connector
    Serial Coax GMSL2 connector - FAKRA Z type
    Serial Coax GMSL2 connector - FAKRA Z type
    Serial Coax GMSL2 connector - FAKRA Z type
    Mounting Options
    4x M4 (bottom) + 1/4”-20UNC adapter plate
    4x M4 (bottom) + 1/4”-20UNC adapter plate
    4x M4 (bottom) + 1/4”-20UNC adapter plate
    Power
    Power via GMSL2 (PoC)
    Power via GMSL2 (PoC)
    Power via GMSL2 (PoC)

    Capture Card

    Capture Card Compatibility
    NVIDIA Jetson Orin and Xavier Platforms
    NVIDIA Jetson Orin and Xavier Platforms
    NVIDIA Jetson Orin and Xavier Platforms

    Other

    In the Box
    • 1x ZED X One • 1x 1.5m GMSL Female to Female cable • 1x adapter plate
    • 1x ZED X One • 1x 1.5m GMSL Female to Female cable • 1x adapter plate
    • 1x ZED X One • 1x 1.5m GMSL Female to Female cable • 1x adapter plate
    Warranty
    2-year hardware warranty
    2-year hardware warranty
    2-year hardware warranty

    Compliance

    Country of Origin
    France
    France
    France
    HS Code
    85258940
    85258940
    85258940
    ECCN
    EAR99
    EAR99
    EAR99
    RoHS
    RoHS 3
    RoHS 3
    RoHS 3
