GMSL2 Stereo Cameras for perception.

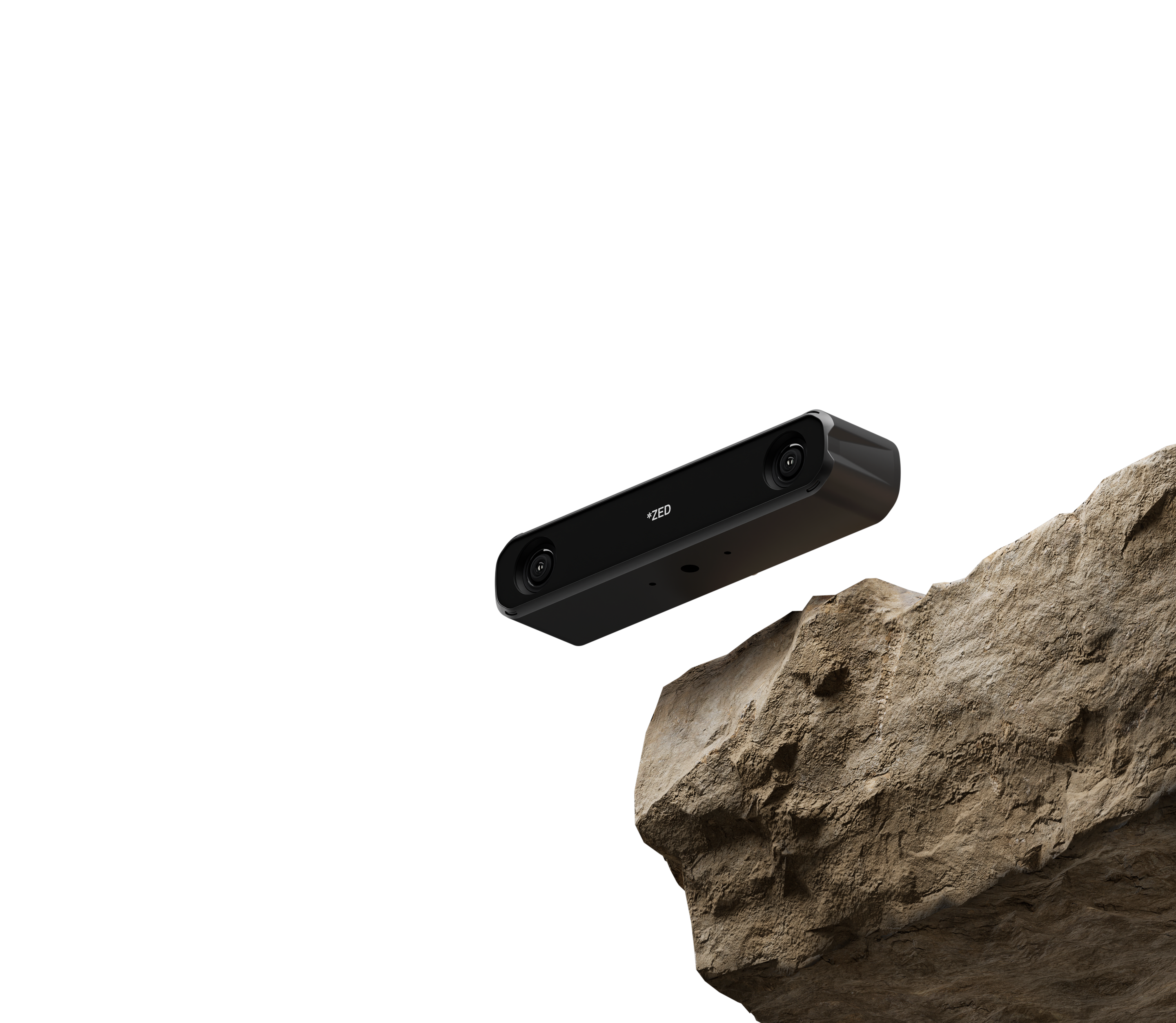

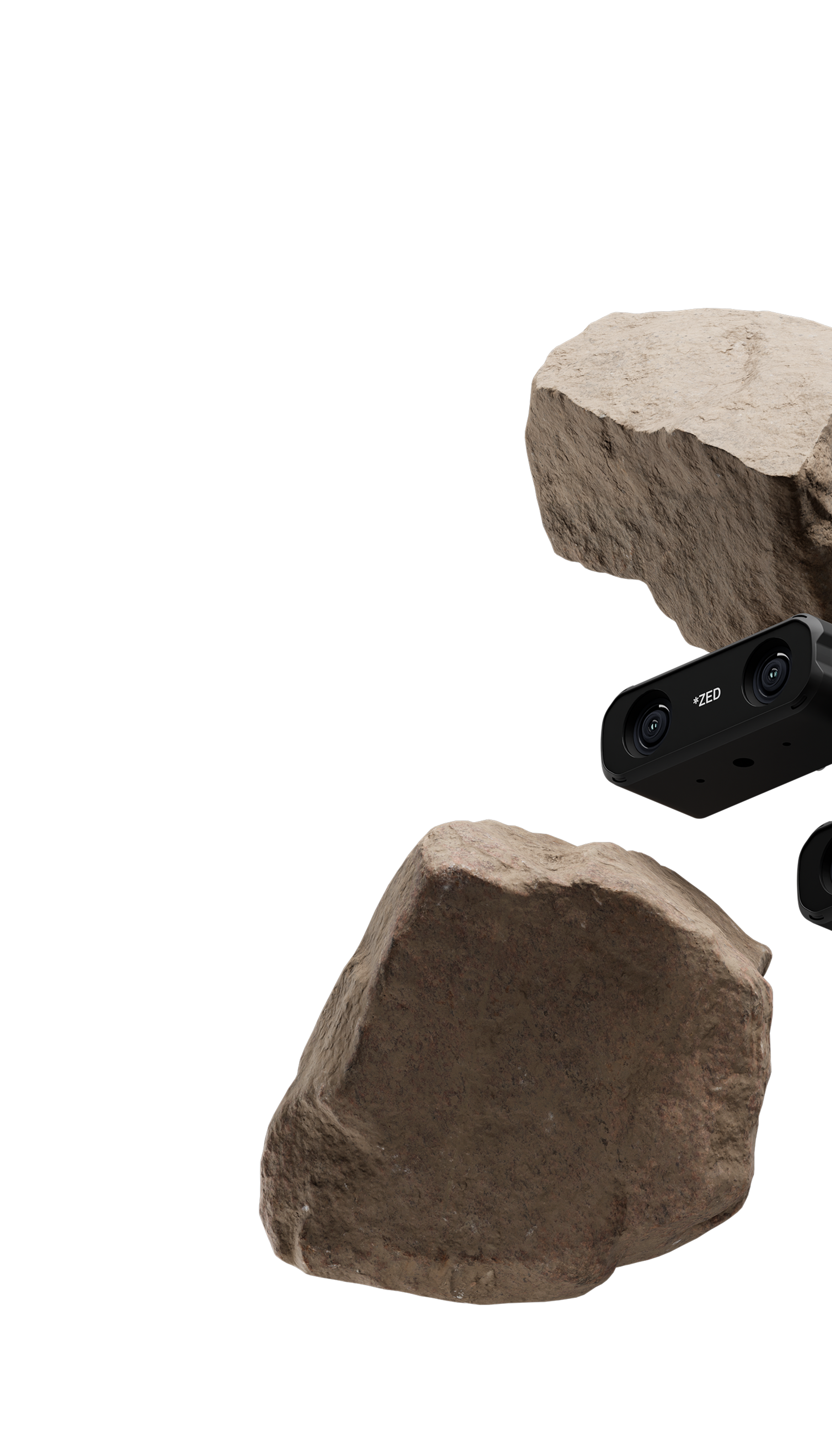

Powered by Stereolabs Terra AI sensing techology, the ZED X is a powerful stereo camera built for machine automation and digital twin applications. With a robust aluminum enclosure, IP67 rating, high-performance IMU, secure GMSL2 connection and external frame sync, it is ready for field operations.
With dual 1920x1200 global shutter color sensors, the camera produces crystal-clear images that quickly capture any action-filled environment.
ZED X’s GMSL2 output is ideal for robotics. Transmit video without EMI through a rugged interface to a Jetson Orin over a distance of up to 15m with low latency.
Get hardware synchronization for multiple connected devices, at frame-level within 100 microseconds. Giving you a total view of an environment, synchronization captures and aligns multiple RGB and depth images.

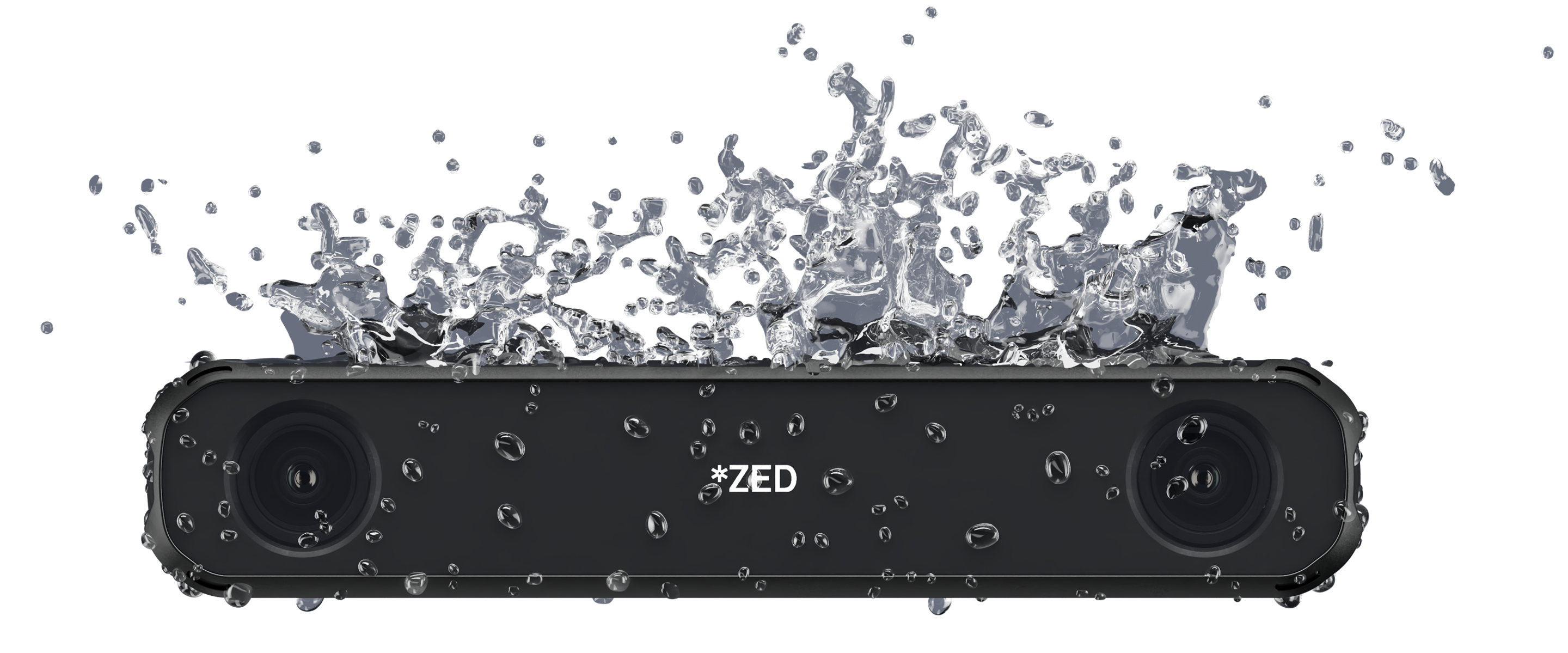

The IP67 rugged enclosure is perfect for agricultural and industrial environments. It ensures protection from dust and water ingress, a necessity for mobile robots.
The all-new IMU combines a 16-bit triaxial accelerometer and gyroscope with vibration resistance, ultra low noise and bias for exceptional motion tracking.
The ZED X’s global shutter captures every movement without sacrificing an ounce of dynamic range or overall image quality. No blurred or curved lines. Just perfect pixels in every scene.
Video & depth resolution
Pixel size
1920x1200 resolution (option A)
960x600 resolution (option B)
With its 9-elements glass lens, high MTF and optical distortion correction, the new ZED X optics are the most advanced lenses ever used in a stereo camera. Choose between a 2mm lens for a wide field of view or a 4mm lens for increased depth and image quality at long range.
OPTIONS
2mm focal length option
4mm focal length option

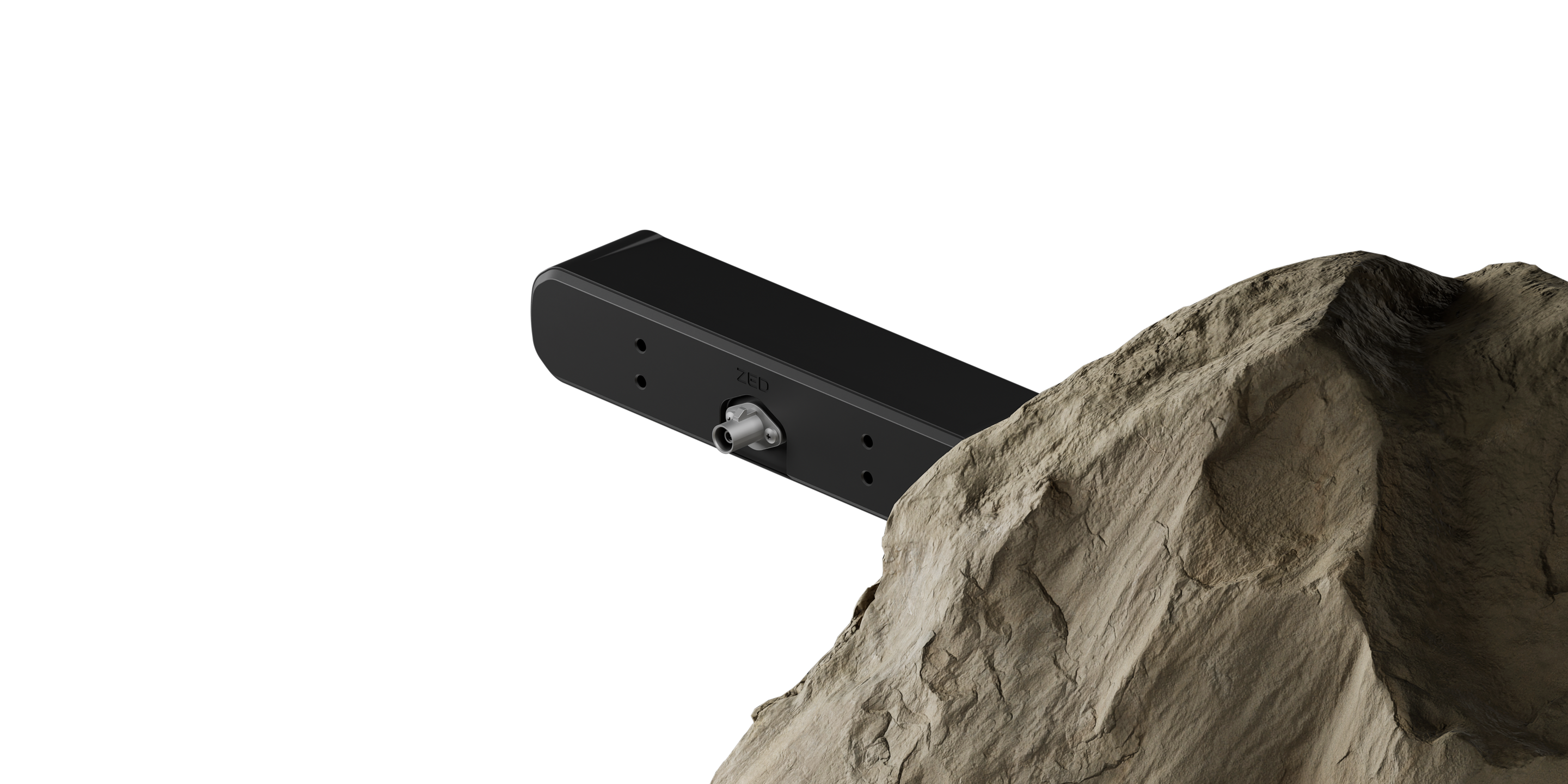

The ZED X is designed for field operation. Its IP67 enclosure and GMSL2 is resistant to dust and water ingress, ensuring 24-7 operations, without interruptions. By providing a continual view of an environment, ZED X enables robots to operate in unstructured environments, and unpredictable conditions.
Aluminum case
Temperature
Dust and water resistance
Interface
The ZED X stereo camera uses Neural Depth Engine 2, the world's most advanced stereo depth sensing technology that virtually replicates the physical world.
High precision 3D positioning can be achieved by fusing localization data from several ZED X cameras and global navigation satellite systems (GNSS) using the latest ZED SDK.
With the ZED SDK, combine depth and visual odometry to build an occupancy map of the robot environment, allowing for safe navigation, in both indoor and outdoor unstructured environments.
Connect up to 4x ZED X cameras on Jetson AGX Orin using hardware synchronization. With the ZED SDK, fuse point clouds and odometry from multiple cameras into a single source of data.
To navigate complex and unpredictable terrains, an autonomous mobile robot needs to be able to see and understand an environment from every angle, without interruption. ZED X’s human-like vision, equips robots with the sight, and insight, required for successful deployment.
Giving indoor mobile robots the ability to understand everyday environments.
Machines need to sense, decide, and act. ZED X equips your autonomous vehicle with the necessary tools for successful deployment.
Find the right ZED GMSL2 camera for your needs.
The ZED X, ZED X Mini and ZED X One are shipped within 2-3 days.
The ZED X must be connected to an NVIDIA Jetson system, which requires a specific capture card to deserialize the video signal coming from the camera. We provide our own capture card and will soon announce a list of compatible capture cards from other vendors.
The ZED X camera is compatible with the new NVIDIA Jetson Orin platform (developer kit only for now.)
Yes, we will provide drivers for 2-camera and 4-camera configurations. For any other configurations, we will provide support documentation.
Yes, the ZED SDK is compatible with the ZED X camera. If you have already developed an application for a ZED, ZED 2 or ZED 2i camera, it will be still working with the ZED X with some minor modifications that we will soon share in our documentation.
Your choice should be based on the minimum depth range required for your application. If depth sensing is necessary below 50cm, you should select the ZED X Mini.
To find the exact cable you need for your configuration please refer to our Cable Guide.
Start building exciting new applications that recognize and understand your environment.
Built by Stereolabs, Neural Depth Engine allows +300% faster depth maps with robustness to untextured surfaces and lighting conditions, from 10 cm to tens of meters.
Giving outdoor mobile robots the ability to understand the most challenging environments.
Give your autonomous robot sight, and insight, in the world.

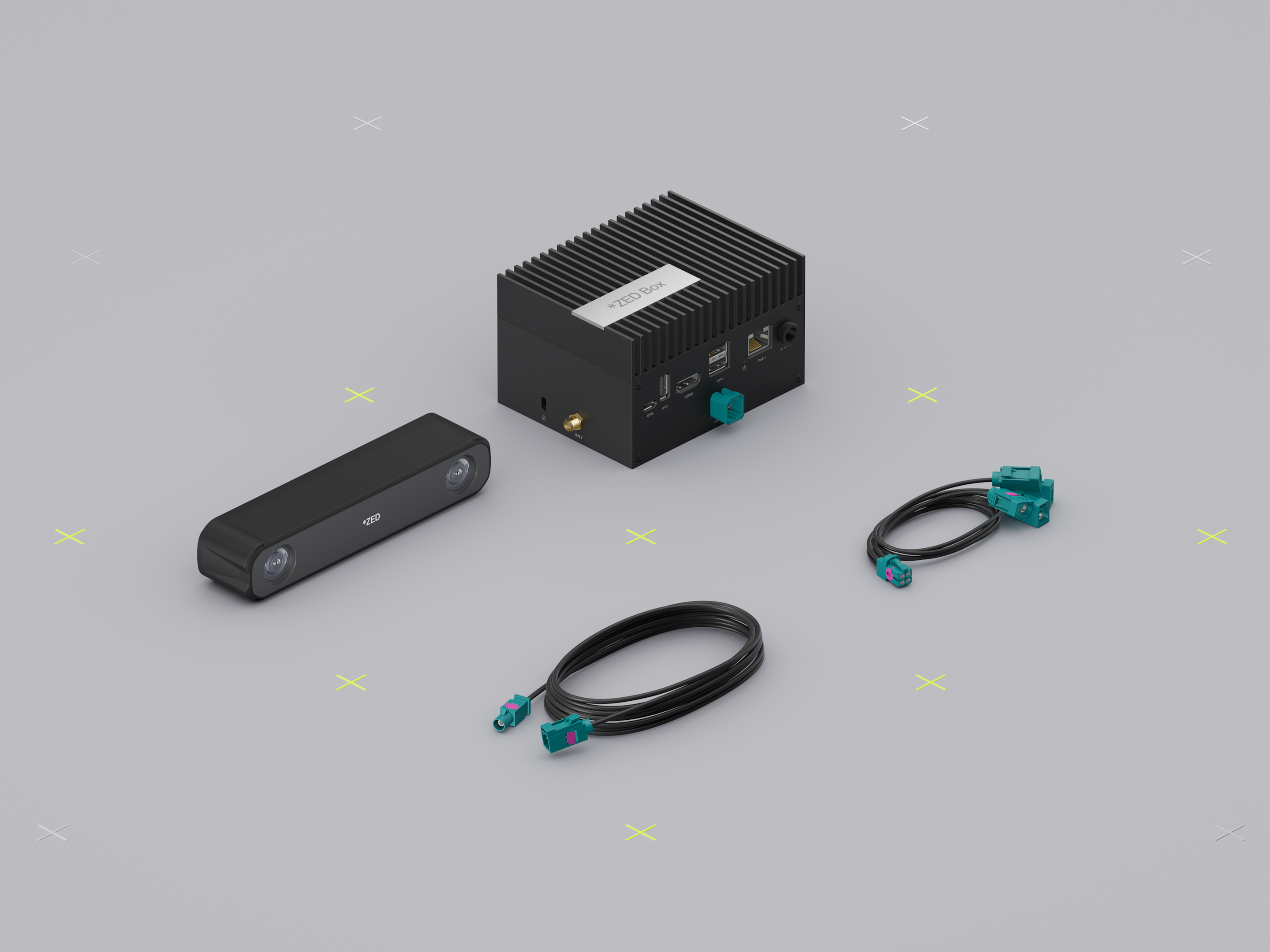

The Robotics Perception Kit brings spatial AI perception and 3D vision to any robot. It combines the ZED X stereo camera with Jetson Orin NX and RTK GNSS, enabling advanced deep learning and computer vision.

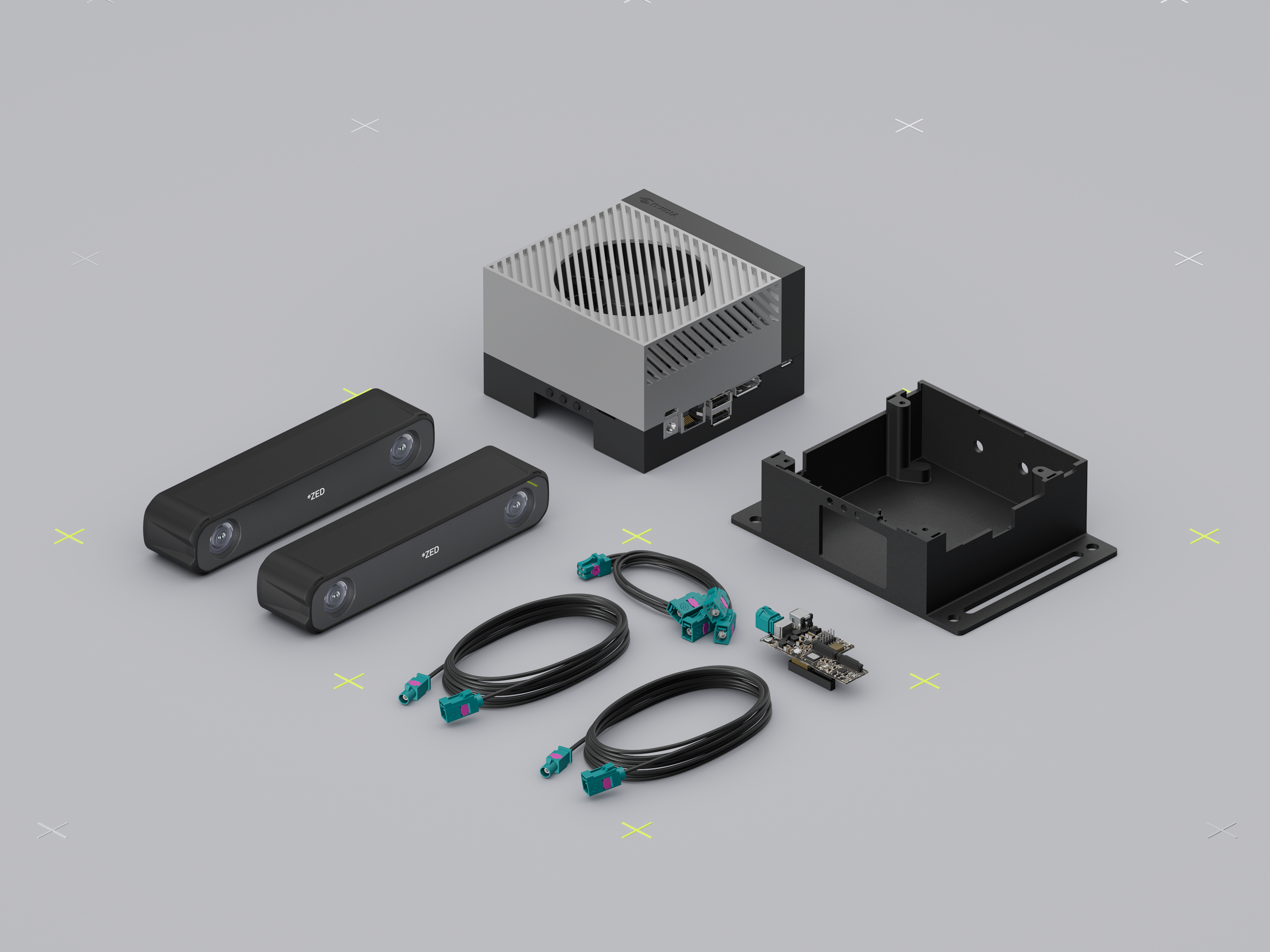

The Robotics Perception Kit - Dual all-in-one solution brings surround perception and autonomy to any robot. It combines two ZED X stereo cameras with an AGX Orin, a GMSL2 capture card, and extension cables.

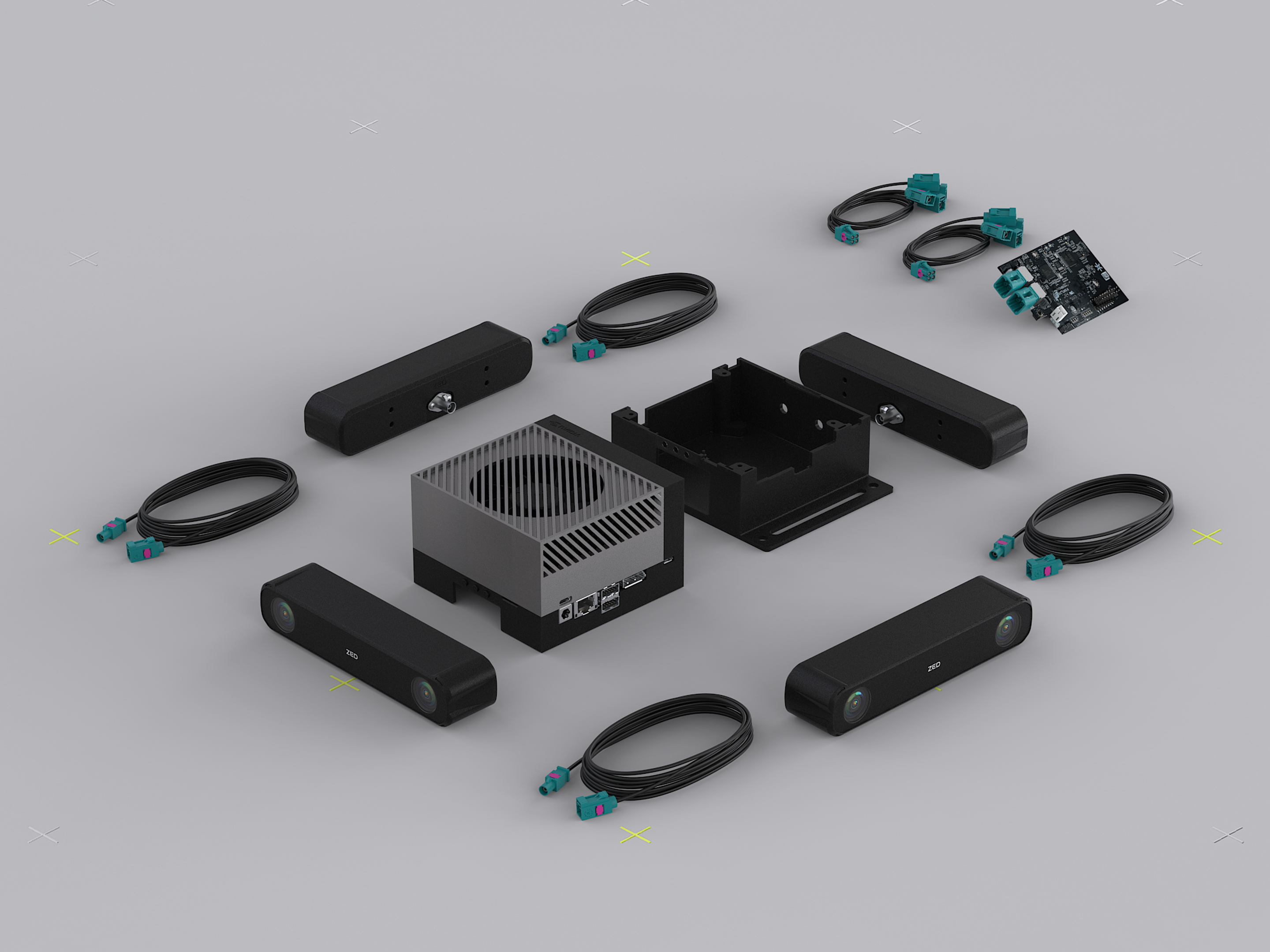

The Robotics Perception Kit brings 360° perception and obstacle detection to any machine. It combines the AGX Orin 64GB with a GMSL2 Quad capture card. This kit comes with four ZED X cameras and extension cables.
4x ZED X - 2.2mm
1x NVIDIA Jetson AGX Orin and mounting enclosure
1x GMSL2 ZED Link Quad Capture Card
1x 4-in-1 GMSL2 cable
4x GMSL2 5m extension cables

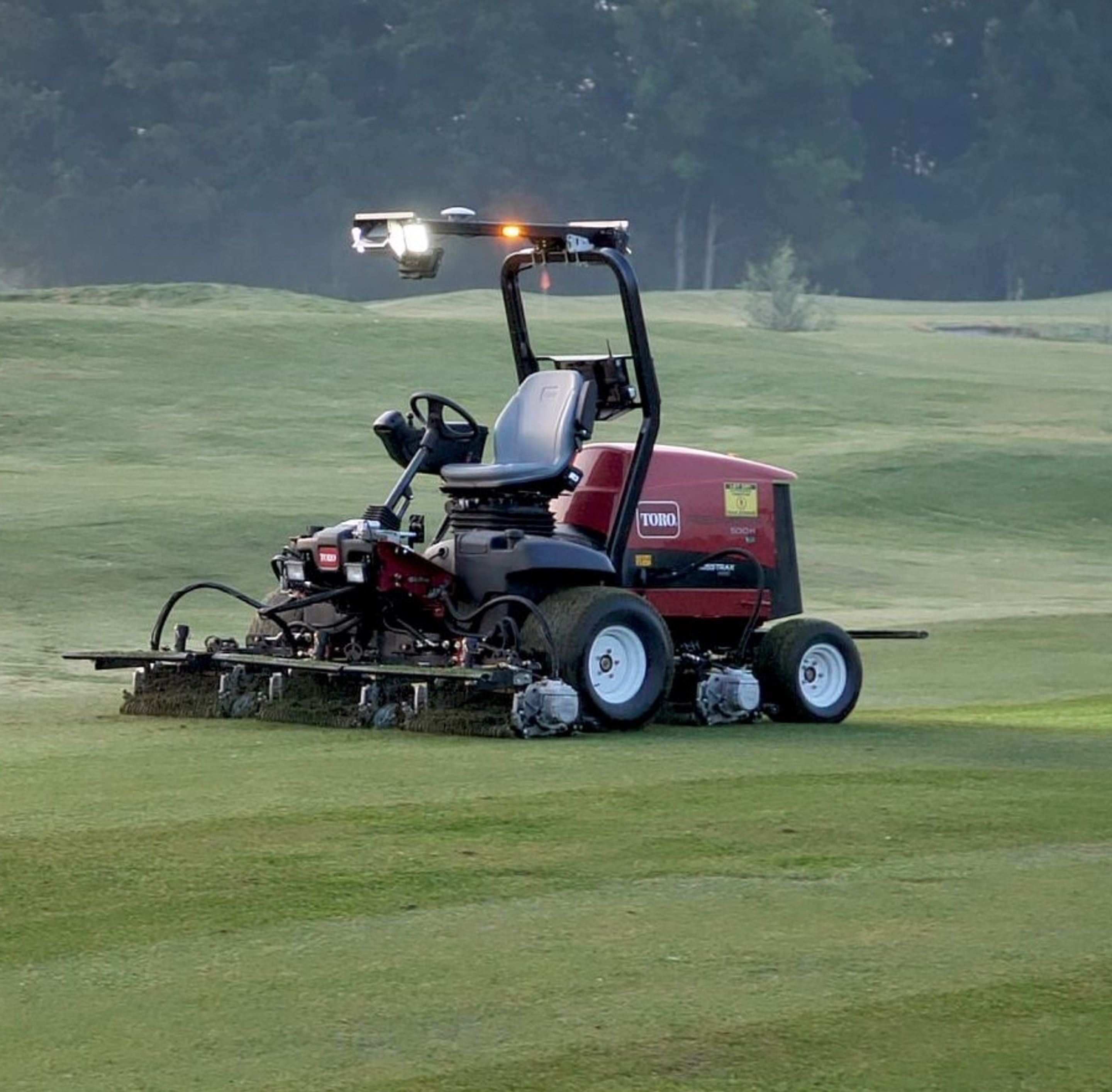

Built to withstand all weather conditions, the ZED X is the ideal choice for small to large machines and autonomous robots in the agriculture, logistics and construction industries.

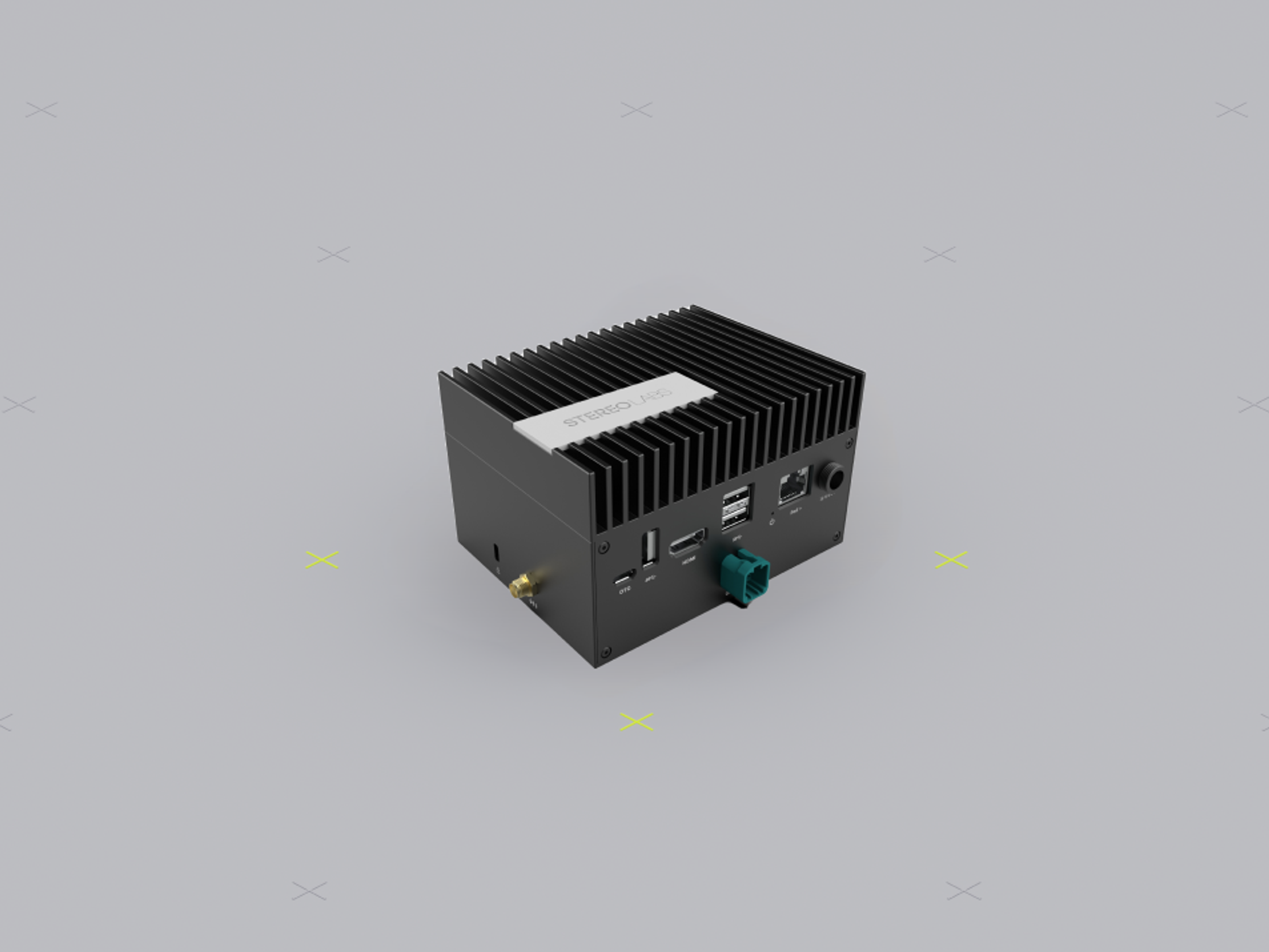

The ZED Box NX 16 supports an NVIDIA® Jetson NX 16GB module, delivering up to 100 TOPS of AI performance, with power configurable between 10W and 25W. This gives you 5x the performance of Jetson Xavier NX. The ZED Box NX 16GB includes a GMSL2 interface to connect up to four ZED X camera.
The Robotics Perception Kit brings spatial AI perception and 3D vision to any robot. It combines the ZED X stereo camera with Jetson Orin NX and RTK GNSS, enabling advanced deep learning and computer vision.
Use the ZED X camera with NVIDIA's latest Jetson Xavier and Orin developer kits.

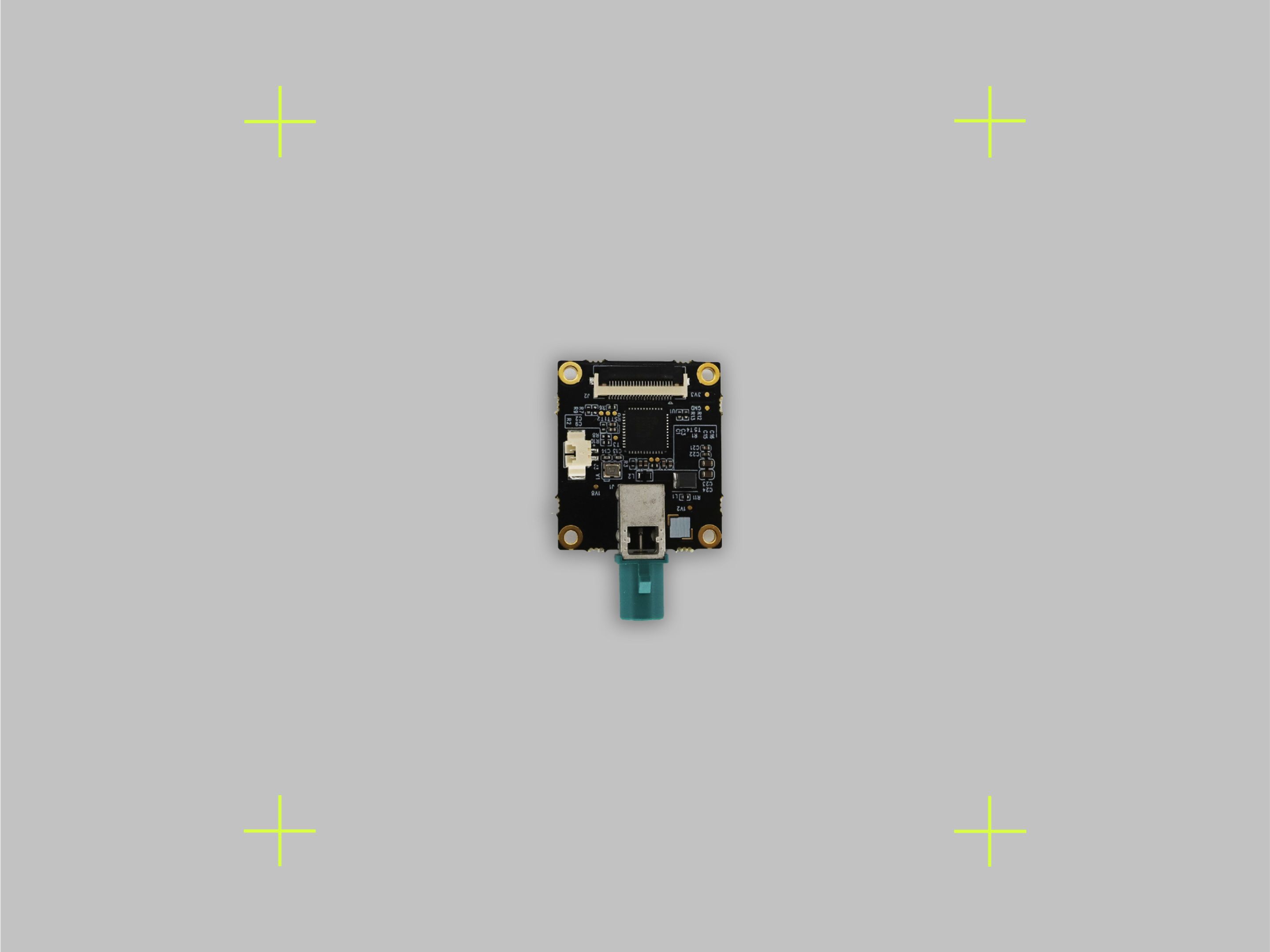

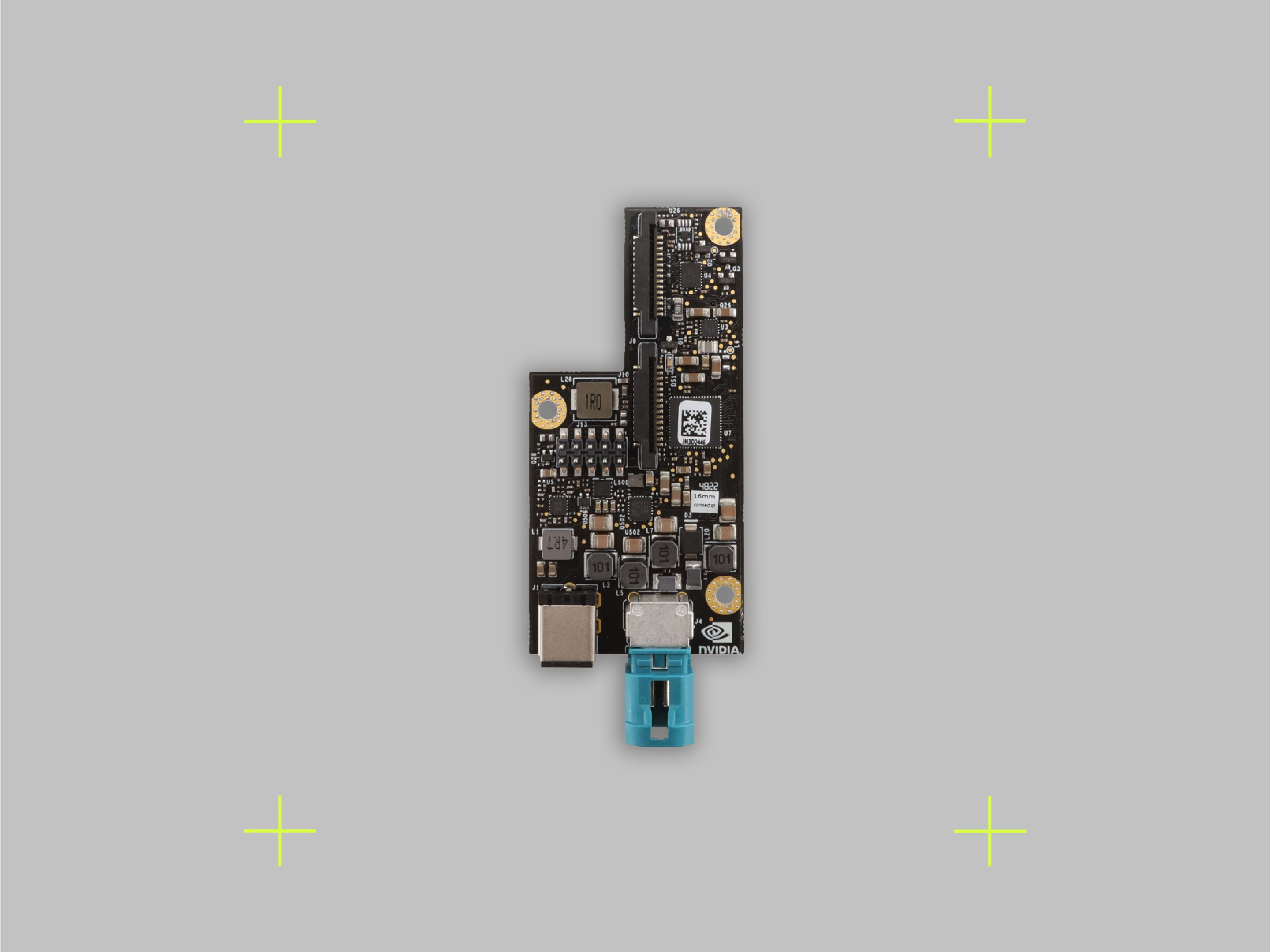

High performance GMSL2 capture card for a single ZED X camera on Orin NX/Nano and Xavier NX/Nano models.
High performance GMSL2 capture card for dual ZED X cameras on all Jetson Orin and Xavier models.

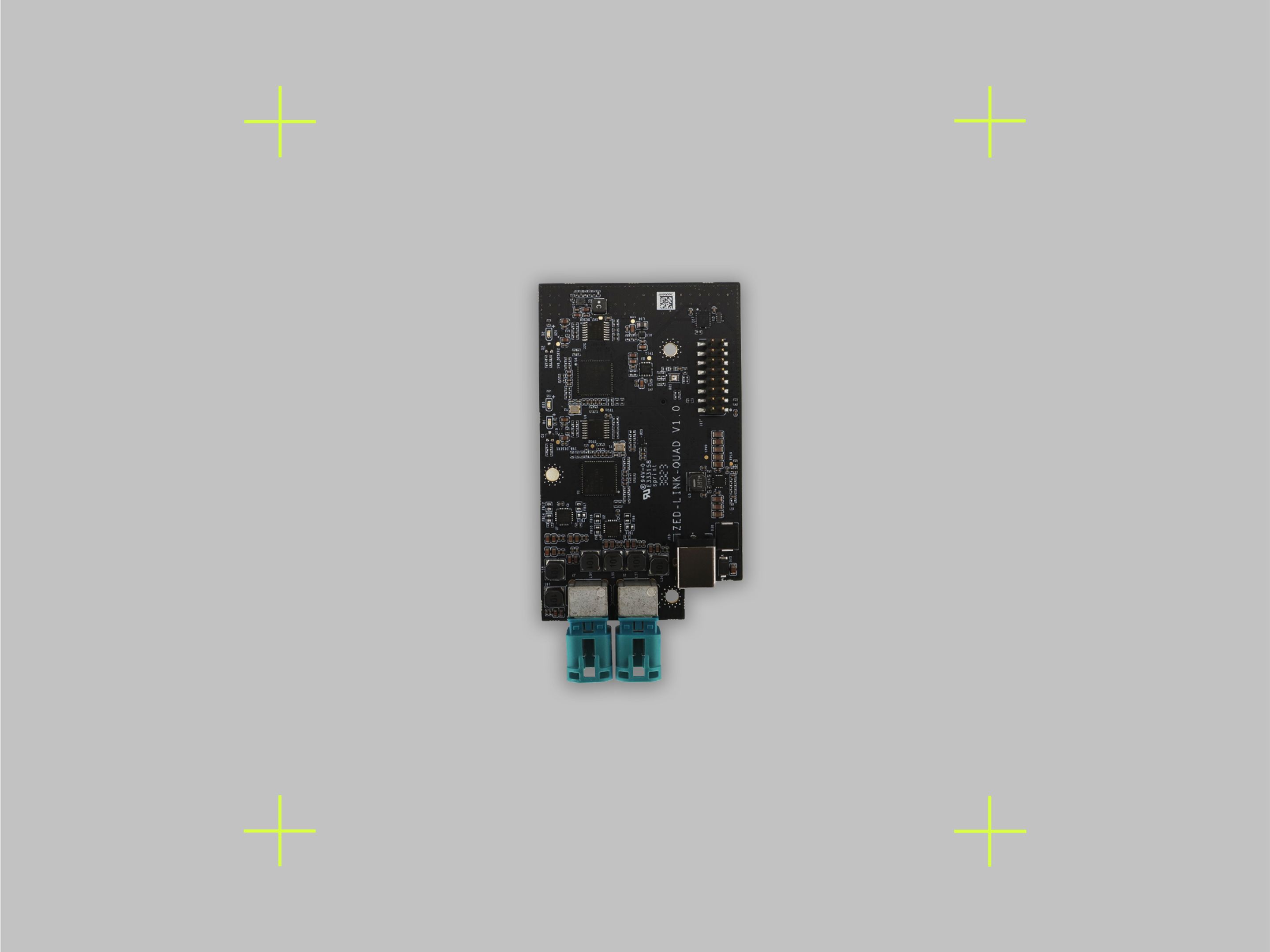

High performance GMSL2 capture card for quad ZED X cameras on all Jetson Orin and Xavier models.

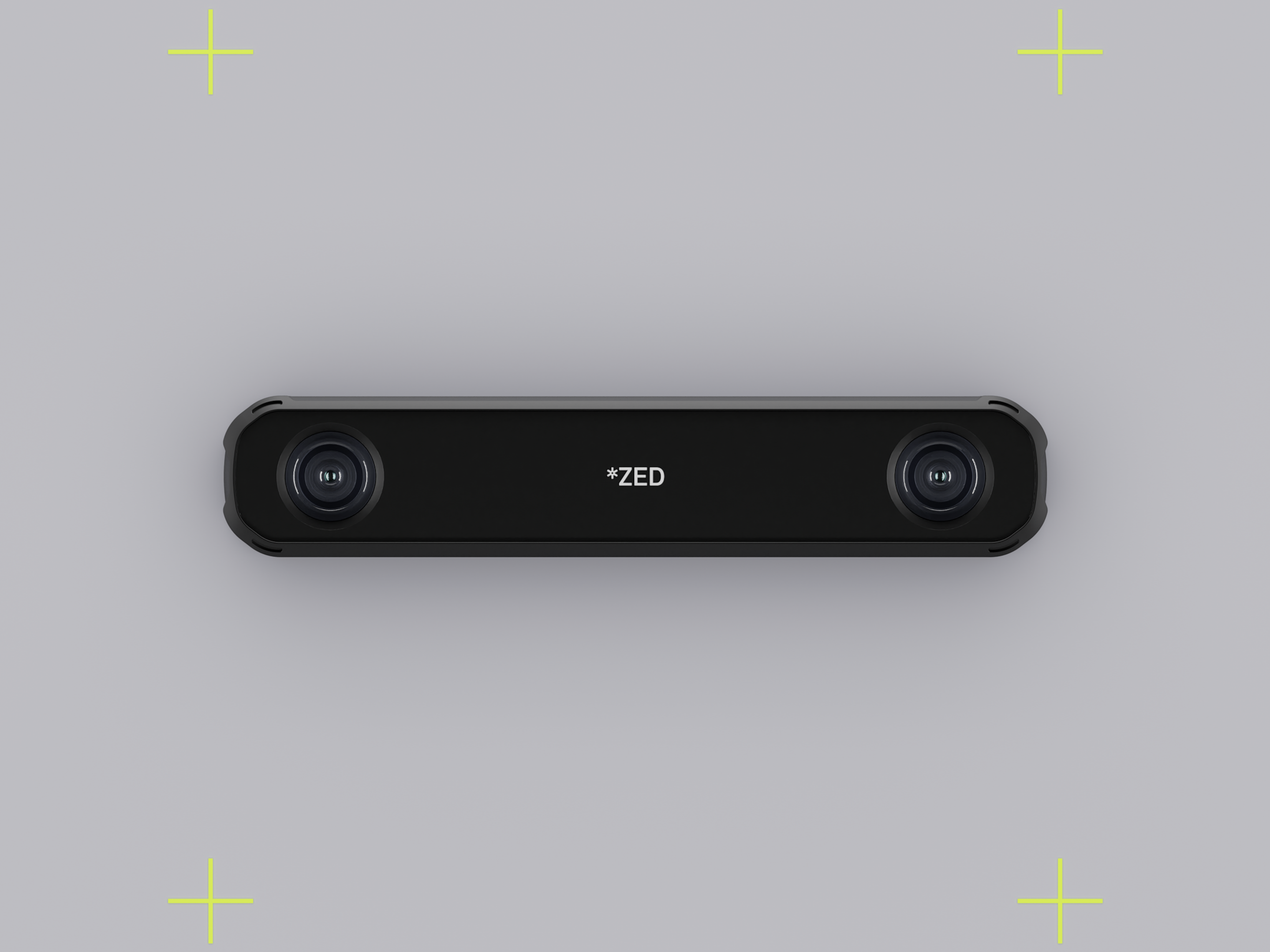

The ZED X has been designed to meet the needs of roboticists working at the bleeding edge. All powered by Global Shutter sensors and a secure GMSL2 connection, with the ZED X specializing in obstacle detection and navigation and the ZED X Mini specializing in short range applications like picking.
Built to withstand all weather conditions, the ZED X is the ideal choice for small to large machines and autonomous robots in the agriculture, logistics and construction industries.

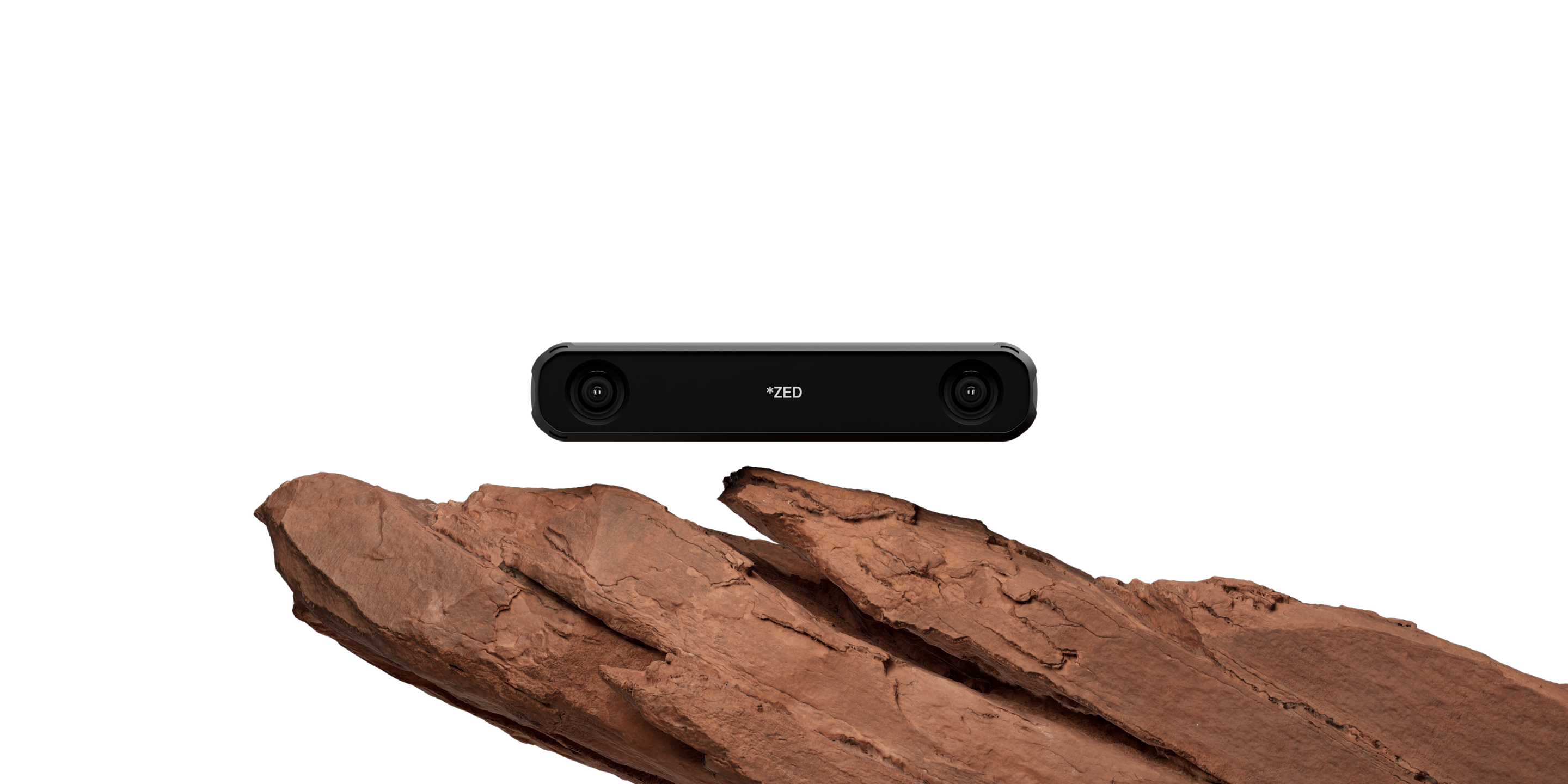

120mm Stereo Baseline
Global Shutter
GMSL2
High-performance IMU
External Synchronization

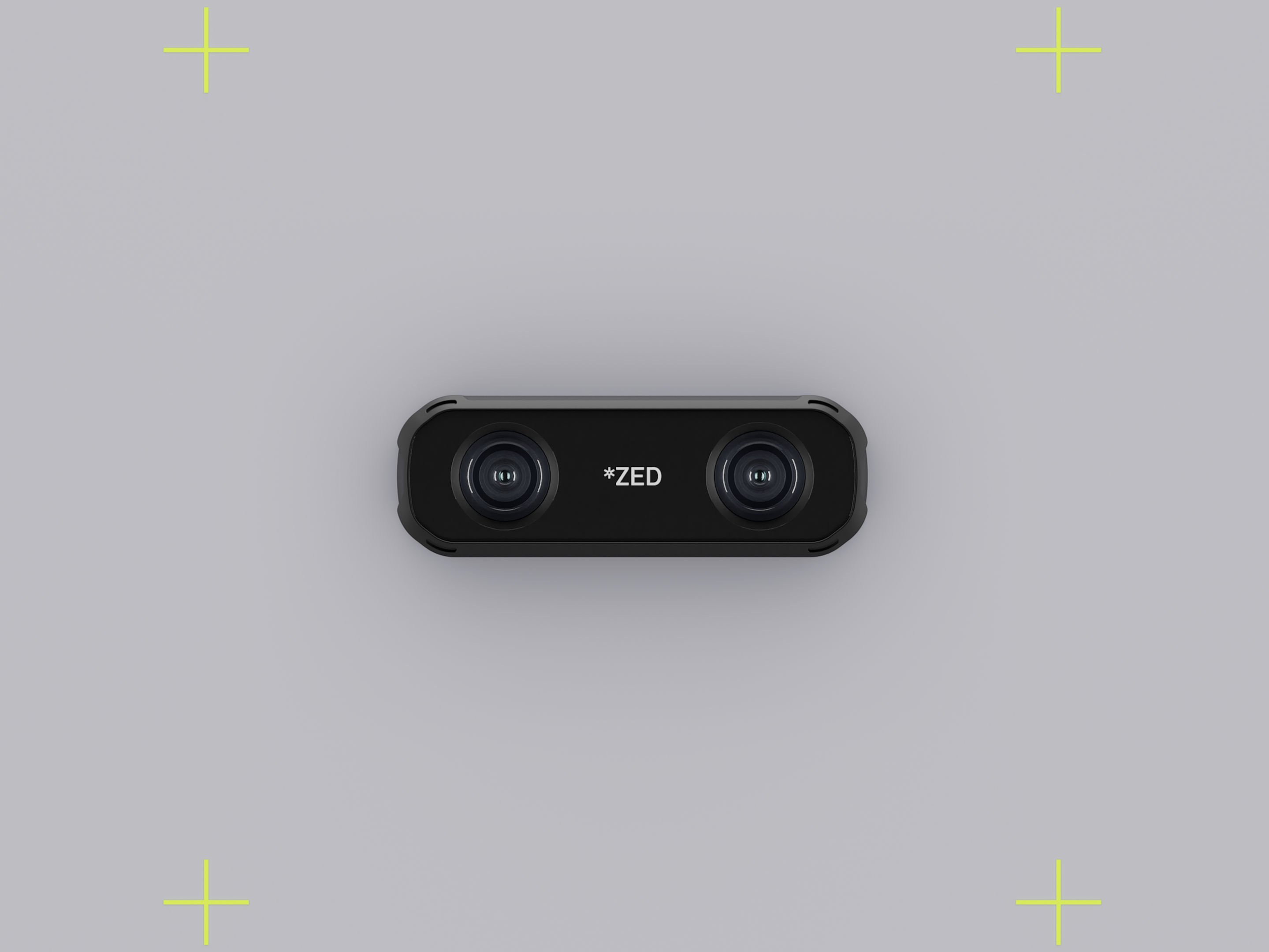

The ZED X Mini is the ideal choice for manipulation tasks across agriculture, logistics and construction. This camera is especially well adapted to short-range applications such as automation and picking.
50mm Stereo Baseline
Global Shutter
GMSL2
High-performance IMU
External Synchronization

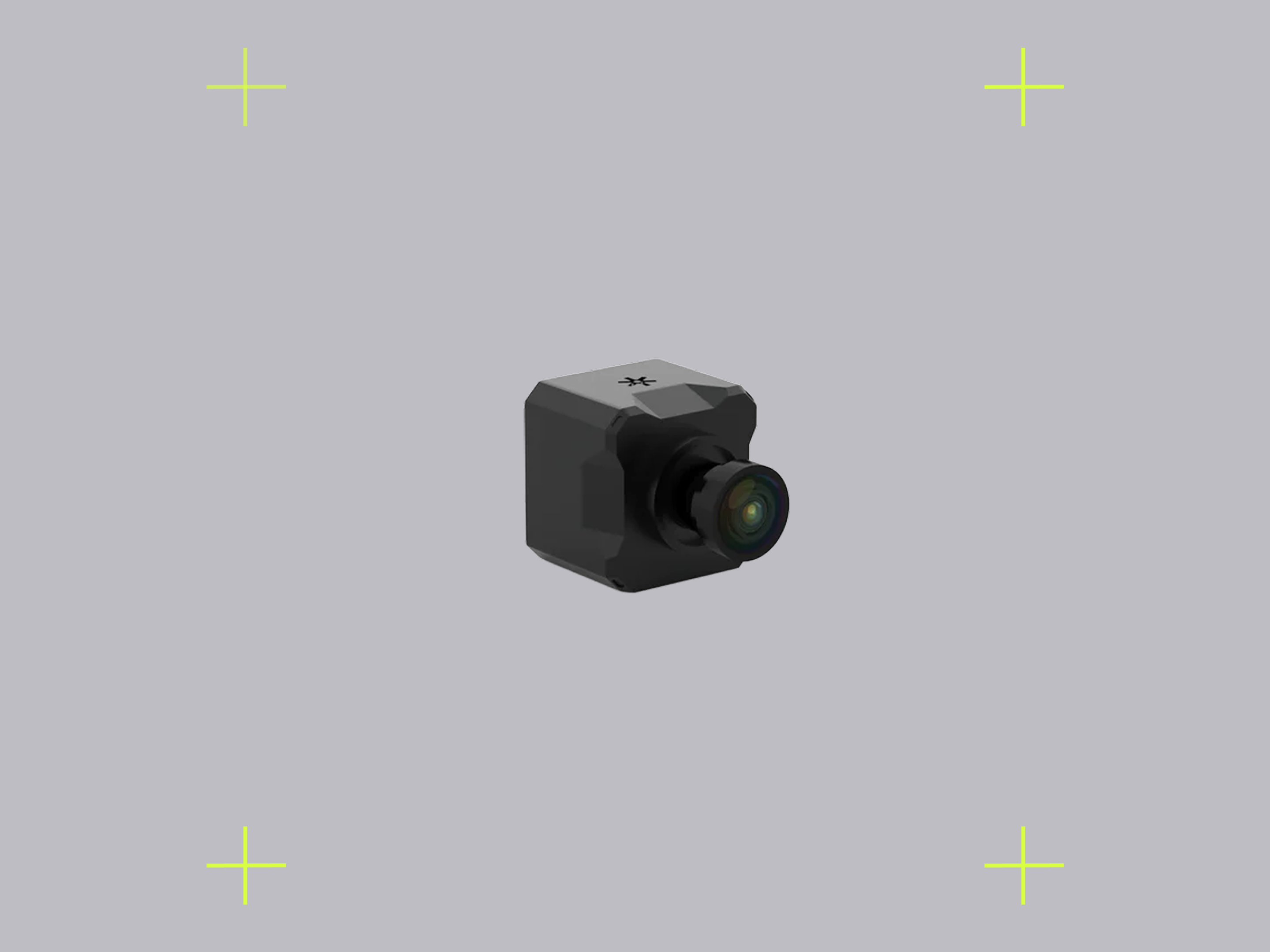

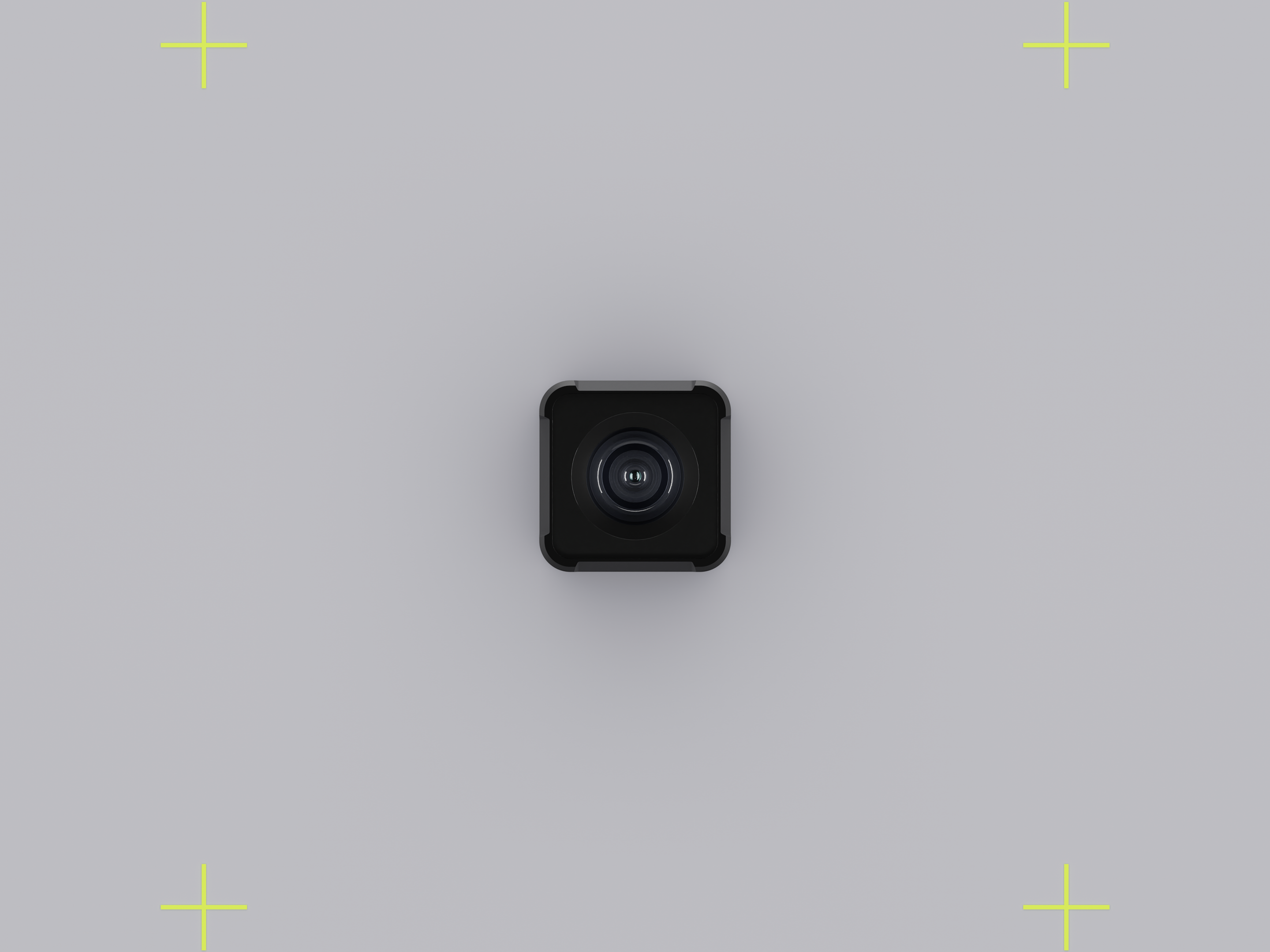

The ZED X One is the ideal choice for multi-camera surround vision or for flexible integration and customization of stereo systems across agriculture, logistics and construction. Its global shutter is ideal for capturing crisp and distortion free footage of fast moving objects in robotics applications.
Monocular Camera
Global Shutter
GMSL2
High-performance IMU
External Synchronization
