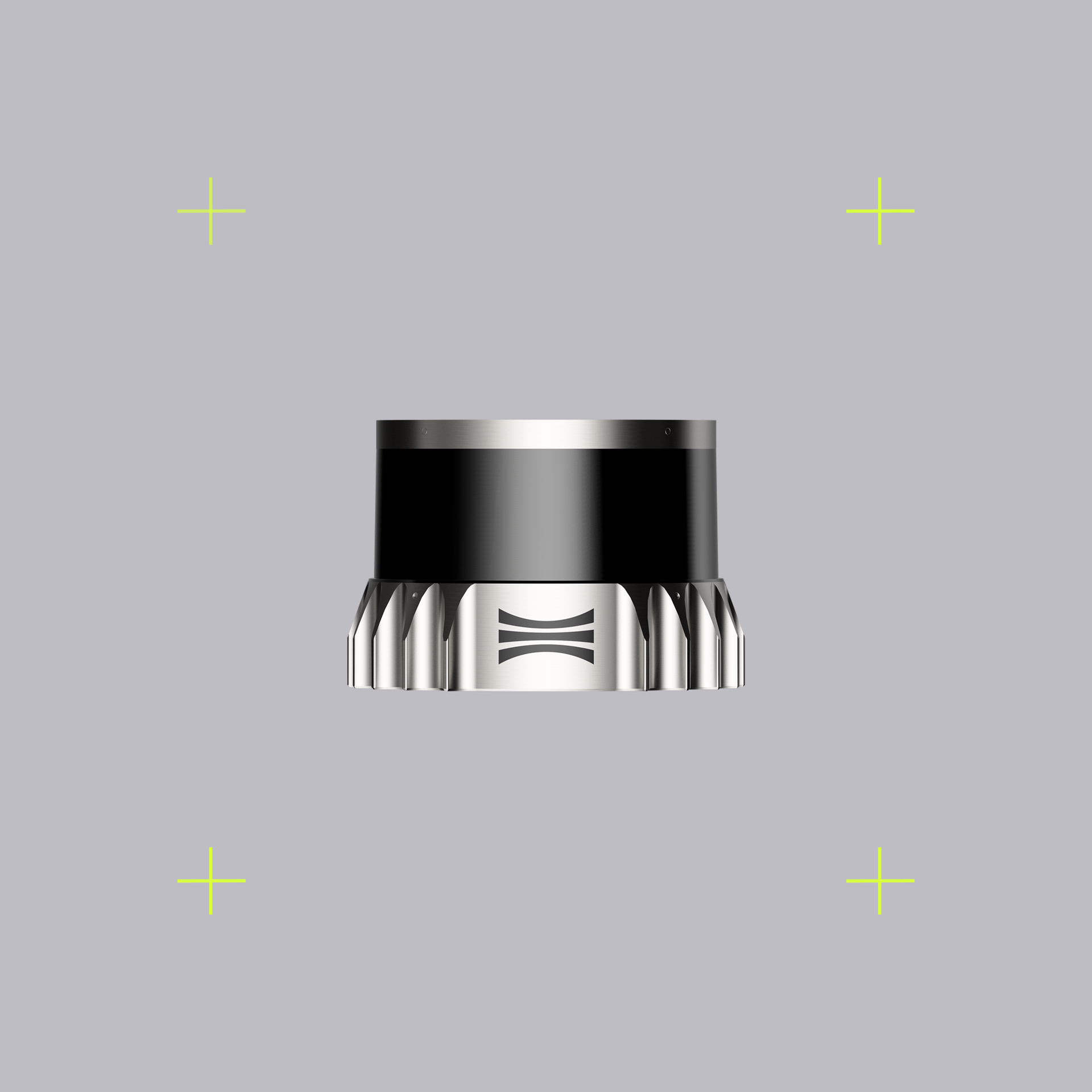

Ouster OS2

Long-Range Sensor

A long-range sensor delivering high-resolution perception for large-scale infrastructure monitoring, security, and autonomous mobility. With a maximum range of 400 meters, the OS2 opens up the unique ability to track vehicles and objects beyond a quarter mile in all directions.

200m Range at 10%
400m Max Range
22.5° Vertical Field of View
128 Channels of Resolution
2.62M Max points Per Second
20 Hz Max Frame Rate
+/- 2 cm Max Precision
MTTF ≥ 250,000

Autonomous vehicles
Long-range industrial applications

Product	SKU	HS Code	COO
Ouster OS2	-	-	-

Downloads

Datasheets

All technical specifications

Download

3D Models

CAD files in .STL & .STEP

Download

SDK

Our software development kit

Download

Drivers

Firmware to get connected

Download

Request quote

Specifications

Range at 10% Target

200 m

35 m

90 m

Precision (up to)

2 cm +/-

0.8 cm +/-

0.5 cm +/-

Vertical Resolution (up to)

0.36°

1.4°

0.7°

Horizontal Resolution (up to)

0.18°

Product Weight

1100g

500g

482g

Maximum Representable Range

~400 m

~100 m

~200 m

Vertical Field of View

22.5°

90°

42.4°

Vertical Angular Resolution

0.36. (64ch), 0.17. (128ch)

1.4º (64ch), 0.7º (128ch)

0.7. (64ch), 0.35. (128ch)

Horizontal Resolution

512, 1024, or 2048

Horizontal Angular Resolution

0.18°

Points per Second

up to 2,621,440

up to 5,242,880

Frame Rate

10 or 20 Hz

Number of Returns

2 (strongest, second strongest)

Ingress Protection

IP68, IP69K

Typical Power Consumption

18-24 W

14-20 W

Operating Voltage

12 / 24 V

Time Synchronization

gPTP; PTP; $GPRMC

Embedded IMU

Yes

Minimum Range

0.8 m

0.0 m

0.5 m

Near-IR Ambient Data

Yes

Ethernet Options

1000-BaseT or 1000-BaseT1

Beam Configuration Options

For 32 and 64 channel options
